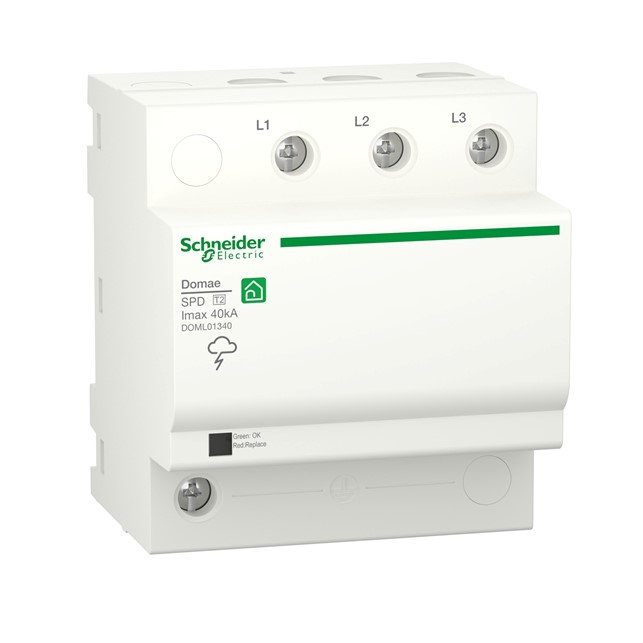

Schneider Surge Protection Device, Domae, 3P, T2, 40 kA
Rp931.601
Deskripsi
Spesifikasi Schneider Surge Protection Device, Domae, 3P, T2, 40 kA
| range of product | Domae |
|---|---|
| Product or component type | Surge arrester |
| Poles description | 3P |
| Earthing system | TT TN-S TN-C |
| Device application | Residential |
| Product destination | Surge protection device |
| surge arrester class type | Type 2 |
|---|---|
| Surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230/400 V +/- 10 % AC 50/60 Hz |
| [In] nominal discharge current | 15 kA |
| [Imax] maximum discharge current | 40 kA |
| [Uc] maximum continuous operating voltage | Common mode: 340 V L/PE Common mode: 260 V N/PE Differential mode: 340 V L/N |
| Response time | < 25 ns |
| Maximum [Up] voltage protection level | <1.5 kV type 2 |
| [Ut] temporary overvoltage | 337 V L/N 5 s withstand 442 V L/PE 5 s withstand 1200 V N/PE 200 ms withstand 1453 V L/PE 200 ms withstand |
| [Isccr] short-circuit current rating | 6 kA |
| Disconnector device type | Circuit breaker Domae MCB 20 A curve C |
| Local signalling | Operating state: flag (green) Fault indication: flag (red) |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 81 mm |
| Width | 72 mm |
| Depth | 63 mm |
| Product weight | 335 kg |
| Colour | White |
| Maximum residual current | 25 mA L/PE |
| Connections – terminals | Tunnel type terminals (phase and neutral) 1…25 mm² Tunnel type terminals (ground) 1…50 mm² |
| Wire stripping length | 11 mm |
| Tightening torque | 2 N.m phase and neutral 3.5 N.m earth |
