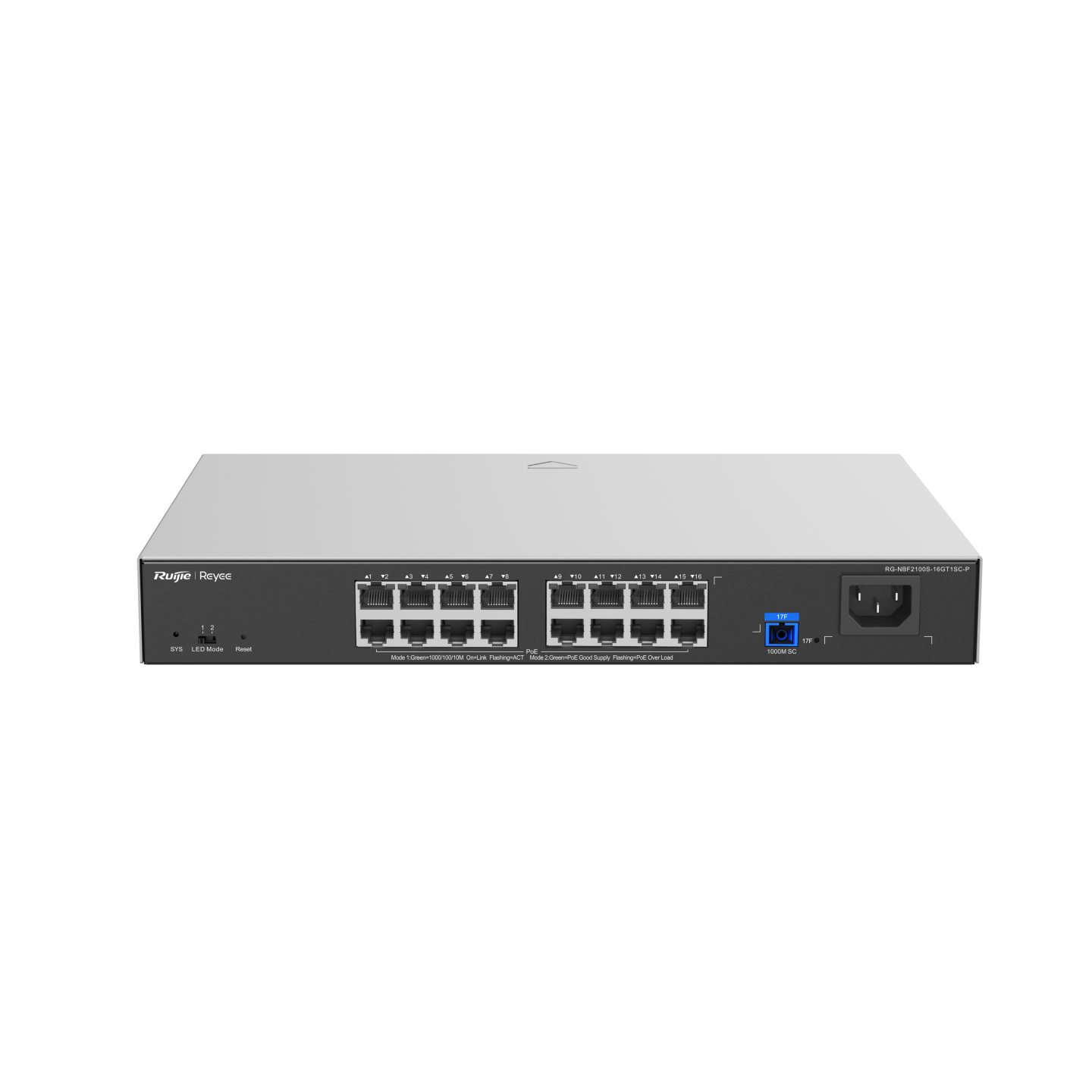

RG-NBF2100S-16GT1SC-P, 1G Layer 2 Cloud Managed PoE+ Switch
Rp8.949.930
-
Passive Optical Networking Support
- Free Layer 2 Cloud Management
- Total PoE Power Output of 240 W
-
Supports VLAN Assignment
- Supports Remote Reboot of Cameras
- Direct Fiber Connection
Deskripsi
Gigabit managed optical access switch(ONU), supports Passive Optical Network(PON), 16 10/100/1000Mbps Ethernet ports, 1 Gigabit SC optical port. Maximum PoE output 240W, maximum PoE output per port 30W. Supports remote port reboot, switch reboot, VLAN division, port isolation, DHCP Snooping. Supports management by Reyee APP and MACC cloud platform
Number of 1000BASE-T Ports : 16
Number of 1G SC Ports : 1
Max. PoE Output Power per Device : 240 W
Device Dimensions (W x D x H) : 330 mm x 229 mm x 44 mm
(12.99 in. x 9.02 in. x 1.73 in.)
Switching Capacity : 34 Gbps
Forwarding Rate : 25.296 Mpps
Port Surge Protection : Common: 6 kV
Net Weight : 2.95 kg (6.50 lbs.)
Certification : CE, CB, SDPPI
