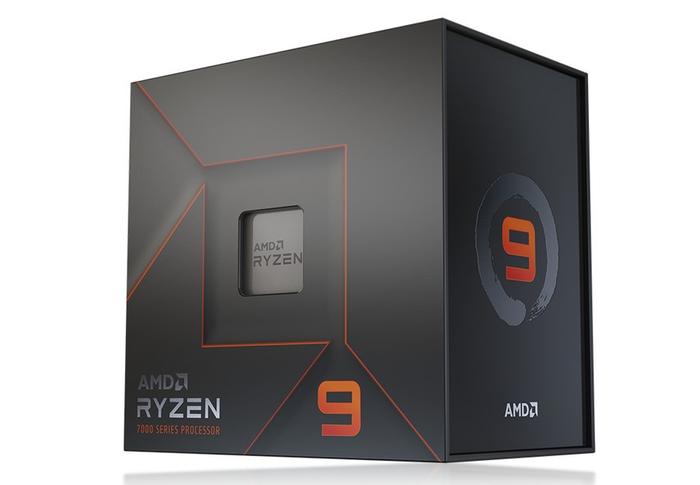

PROCESSOR AMD Ryzen 9 7950X AM5
Rp11.450.205
Deskripsi
| Specifications |
| Name |
| AMD Ryzen™ 9 7950X |
| Family |
| Ryzen |
| Series |
| Ryzen 7000 Series |
| Form Factor |
| Desktops , Boxed Processor |
| Market Segment |
| Enthusiast Desktop |
| AMD PRO Technologies |
| No |
| Regional Availability |
| Global |
| Former Codename |
| Raphael AM5 |
| Processor Architecture |
| Zen 4 |
| # of CPU Cores |
| 16 |
| Multithreading (SMT) |
| Yes |
| # of Threads |
| 32 |
| Max. Boost Clock |
| Up to 5.7 GHz |
| Base Clock |
| 4.5 GHz |
| L1 Cache |
| 1024 KB |
| L2 Cache |
| 16 MB |
| L3 Cache |
| 64 MB |
| Default TDP |
| 170W |
| Processor Technology for CPU Cores |
| TSMC 5nm FinFET |
| Processor Technology for I/O Die |
| TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size |
| 71mm² |
| I/O Die (IOD) Size |
| 122mm² |
| Package Die Count |
| 3 |
| Unlocked for Overclocking |
| Yes |
| AMD EXPO™ Memory Overclocking Technology |
| Yes |
| Precision Boost Overdrive |
| Yes |
| Curve Optimizer Voltage Offsets |
| Yes |
| AMD Ryzen™ Master Support |
| Yes |
| CPU Socket |
| AM5 |
| Supporting Chipsets |
| A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| CPU Boost Technology |
| Precision Boost 2 |
| Instruction Set |
| x86-64 |
| Supported Extensions |
| AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) |
| Not Included |
| Recommended Cooler |
| Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) |
| 95°C |
| Launch Date |
| 09/27/2022 |
| *OS Support |
| Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity |
| Native USB 3.2 Gen 2 (10Gbps) |
| 4 |
| Native USB 3.2 Gen 1 (5Gbps) |
| 0 |
| Native USB 2.0 (480Mbps) |
| 1 |
| Native SATA Ports |
| 0 |
| PCI Express® Version |
| PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) |
| 28 , 24 |
| Additional Usable PCIe Lanes from Motherboard |
| X670E |
| 12x Gen4 |
| X670 |
| 12x Gen4 |
| B650E |
| 8x Gen4 |
| B650 |
| 8x Gen4 |
| NVMe Support |
| Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type |
| DDR5 |
| Memory Channels |
| 2 |
| Max. Memory |
| 128 GB |
| System Memory Subtype |
| UDIMM |
| Max Memory Speed |
| 2x1R |
| DDR5-5200 |
| 2x2R |
| DDR5-5200 |
| 4x1R |
| DDR5-3600 |
| 4x2R |
| DDR5-3600 |
| ECC Support |
| Yes (Requires mobo support) |
| Graphics Model |
| AMD Radeon™ Graphics |
| Graphics Core Count |
| 2 |
| Graphics Frequency |
| 2200 MHz |
| USB Type-C® DisplayPort™ Alternate Mode |
| Yes |
| Product ID Boxed |
| 100-100000514WOF |
| Product ID Tray |
| 100-000000514 |
| Supported Technologies |
| AMD EXPO™ Technology , AMD Ryzen™ Technologies |
